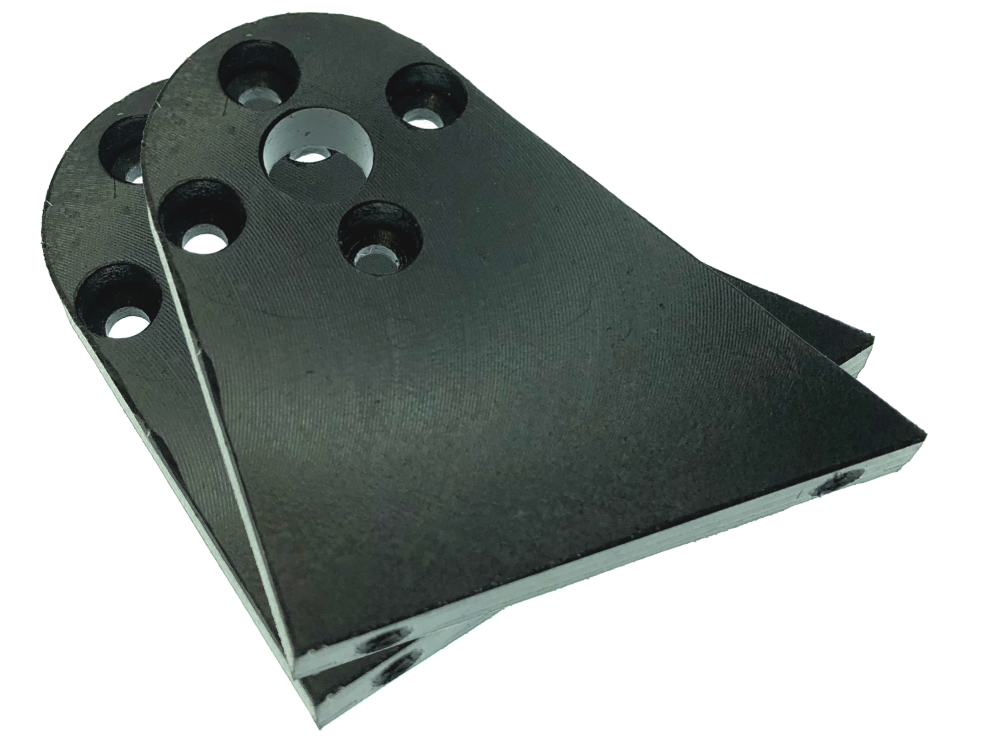

FingerTech F28xx Motor Upright Mounts (pre-Apr'25)

- Mount your F28xx brushless motor securely with an outboard support so it can really dish out the hits!
- Includes two uprights; one to mount the motor, one to hold a roller bearing (sold separately).
- These are used in our Viper Vertical Spinner Add-On with the Clamping Drum Weapon.

Specifications:
- Material: UHMW Polyethylene is not brittle and can absorb shocks
- Length: 44.5mm (1.75in)
- Height: 45.6mm (1.80in)
- Motor Height: 33.2mm (1.31in) from base
- Thickness: 6.35mm (0.25in)
- Mounts to chassis via two 4-40 thread screws spaced 32.5mm (1.28in) apart
- Four counterbored and countersunk holes for M3 flat head screws (included with our F2822-4mm brushless motor)
- A HK0408 4mm roller bearing presses into the upright opposite the motor screws to support the 4mm shaft.
- Weight: 7grams (0.25oz) each

F-Series Motor Upright Mount R2.STEP
