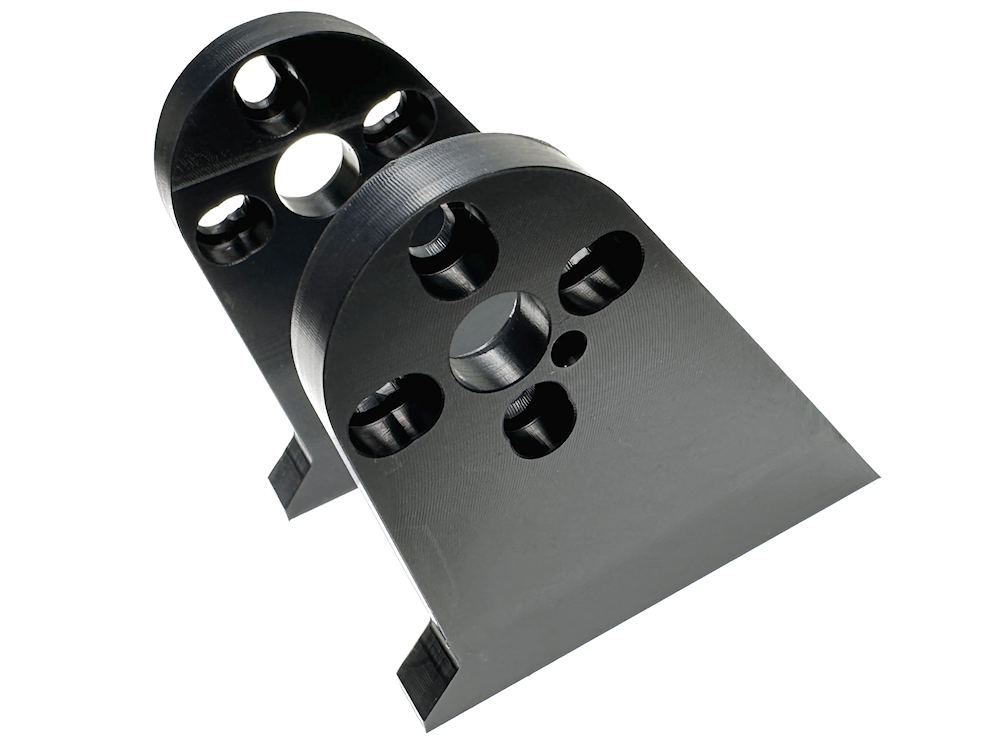

FingerTech F28xx Motor Upright Mounts

- Mount your F28xx brushless motor securely with an outboard support so it can really dish out the hits!
- Includes two uprights; one to mount the motor, one to hold a roller bearing (sold separately).
- These are used in our Viper Vertical Spinner Add-On with the Clamping Drum Weapon.

Specifications:
- Material: UHMW Polyethylene is not brittle and can absorb shocks
- Length: 52.8mm (2.08in)
- Height: 50.6mm (1.99in)
- Motor Height: 37.6mm (1.48in) from base
- Thickness: 6.35mm (0.25in)
- Each mounts to chassis via two 4-40 thread screws spaced 32.5mm (1.28in) apart
- Four counterbored and countersunk holes for M3 flat head screws (included with our F2822-4mm brushless motor). Now slotted for mounting the motor at either rotation!
- A HK0408 4mm roller bearing presses into the upright opposite the motor screws to support the 4mm shaft.
- Single small hole can be used for a bearing-retaining screw if needed.
- Weight: 9grams (0.32oz) each

F-Series Motor Upright Mount R2.STEP(pre-April '25. New version coming soon)
