FingerTech CF Mega Spark Mount (pair) #1FingerTech CF Mega Spark Mount (pair) #2

FingerTech CF Mega Spark Mount (pair)

Price: 7.21 CAD
5.11 USD 4.42 EUR

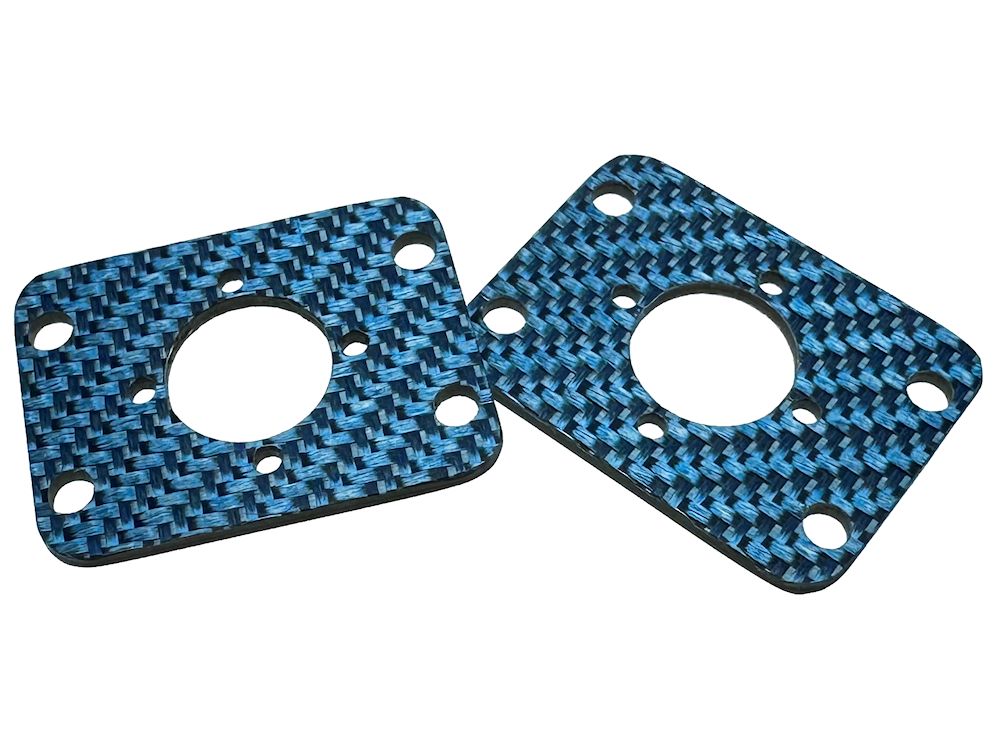

These Carbon Fibre Mega Spark Mounts are used to face-mount drive motors to flat robot sides.

• Includes a pair of mounts with chassis mounting holes.

• 36mm x 18mm hole pattern for Beetleweight motors such as our Brushless Mega Spark Gearmotors or Premium 22mm Planetary Gearmotor.


-
+
  • Description
  • CAD Files
  • Reviews
  • Related
These Carbon Fibre Mega Spark Mounts are used to face-mount drive motors to flat robot sides.

Specifications:
- Sold in pairs
- Width: 38.1mm (1.5in)
- Height: 28.6mm (1.125in)
- Thickness: 2.0mm (0.08in)
Previously: - 18mm hole pattern for Beetleweight motors that use M2 screws such as the 22mm Planetary Brushed Gearmotor and pre-July'25 Brushless Mega Spark Gearmotors.
Newly available: - 19mm hole pattern that fits Beetleweight motors with M3 screws on a 19mm circle such as our Brushless Mega Spark Gearmotors, or M2 screws on an 18mm circle such as the 22mm Planetary Brushed Gearmotor.
- Four chassis mounting holes for #6 screws spaced 32mm x 16mm apart
- Weight: 2.8grams (0.10oz) each

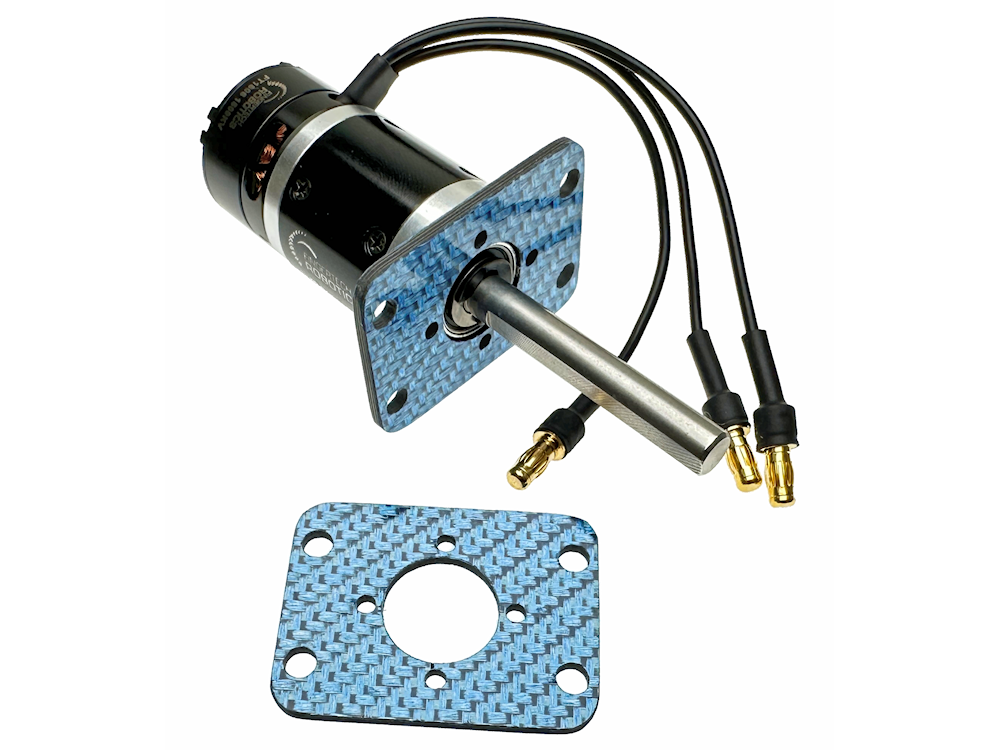

- For mounting 22mm Planetary Brushed Gearmotors and pre-July'25 Brushless Mega Spark Gearmotors, use these M2-0.4 x 5mm sockethead screws.
- For mounting post-July '25 Brushless Mega Spark Gearmotors use these M3-0.5 x 5mm sockethead screws.
