In June '22 the servo labels changed to FH-5515MG.

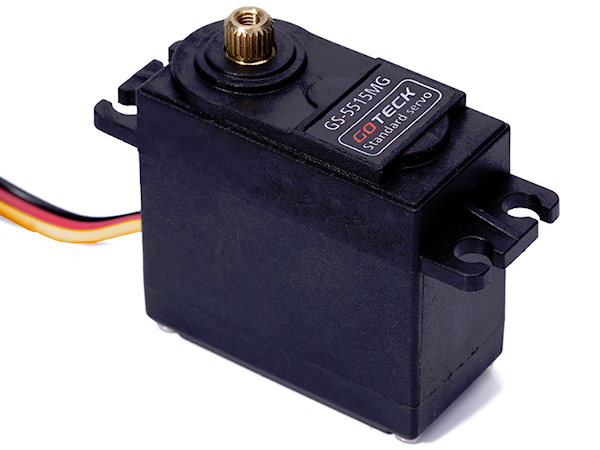

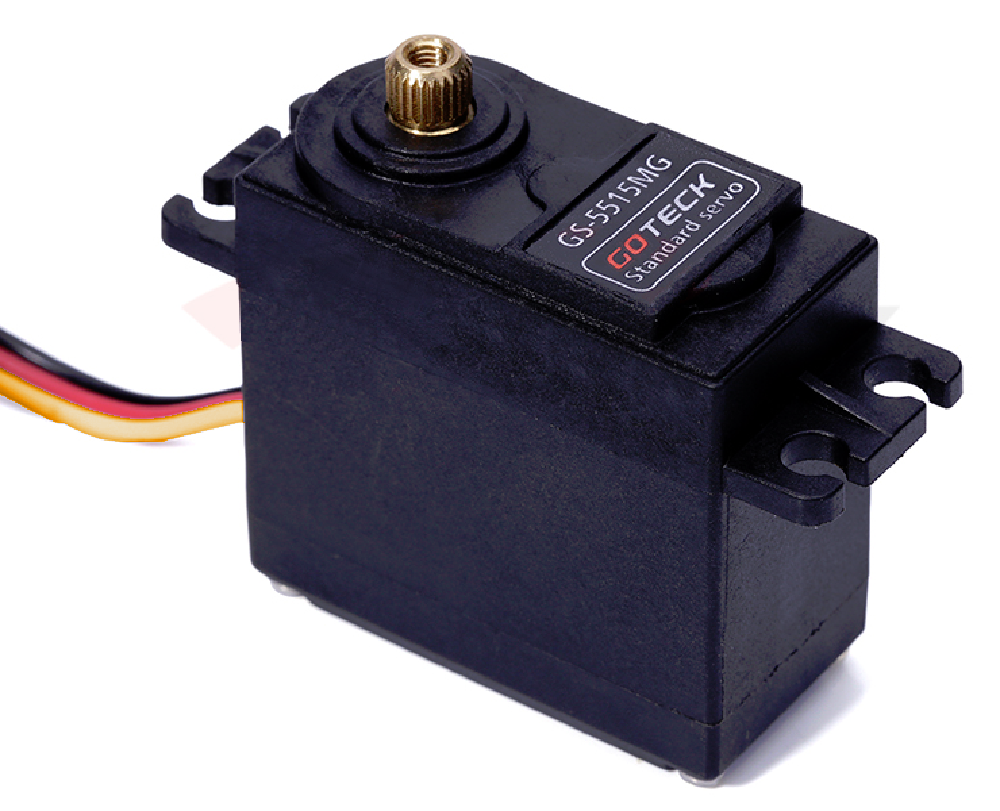

In Oct '21 the servo labels changed to FH-5515DM, but they are the same as the previous GS-5515MG. We have upgraded our servos to the "FT-25KG-9V" 25kg 9V Digital Servo. Check them out!Specifications: Voltage: 4.8V - 10.0Vmax
Type: Analog, 60° (±10°) of rotation, can be
modified for continuous rotation. *We are getting more like 80° of rotation using our transmitters which have the stick limits bumped to 120% through their programming.
Direction: Clockwise is Pulse Travel 1100 to 1500 usec (so stick "Up" is counterclockwise)
Dimensions: 40mm x 40mm x 20mm (1.57" x 1.57" x 0.79")
Weight: 62g (2.19oz)
Construction: All metal gears, double ball bearing
Accepts 25T Futaba-splined servo arms. Includes an M3 screw to attach arm.
If your robot's battery is higher than 9V, simply run the servo power from a
9V regulator.
| Operating Voltage: | 4.8V | 6.0V | 7.4V | 9.0V |
Speed:
Stall torque:
Stall (oz-in):
Idle Current:
Avg Current:
Stall Current: | 0.31sec/60°
13kg-cm
(139oz-in)
250mA
0.65A
1.6A | 0.28sec/60°
15kg-cm
(173oz-in)
300mA
0.8A
1.8A | 0.24sec/60°
18kg-cm
(214oz-in)
350mA
1.0A
2.2A | 0.20sec/60°
20kg-cm
(250oz-in)
450mA
1.2A
2.6A |
CAD File: FH-5515MG.STEP
