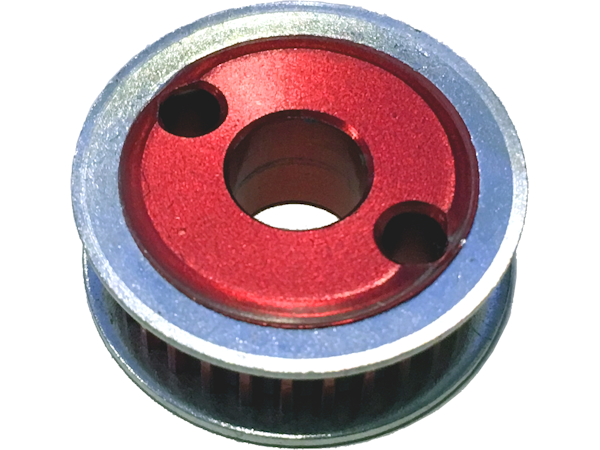

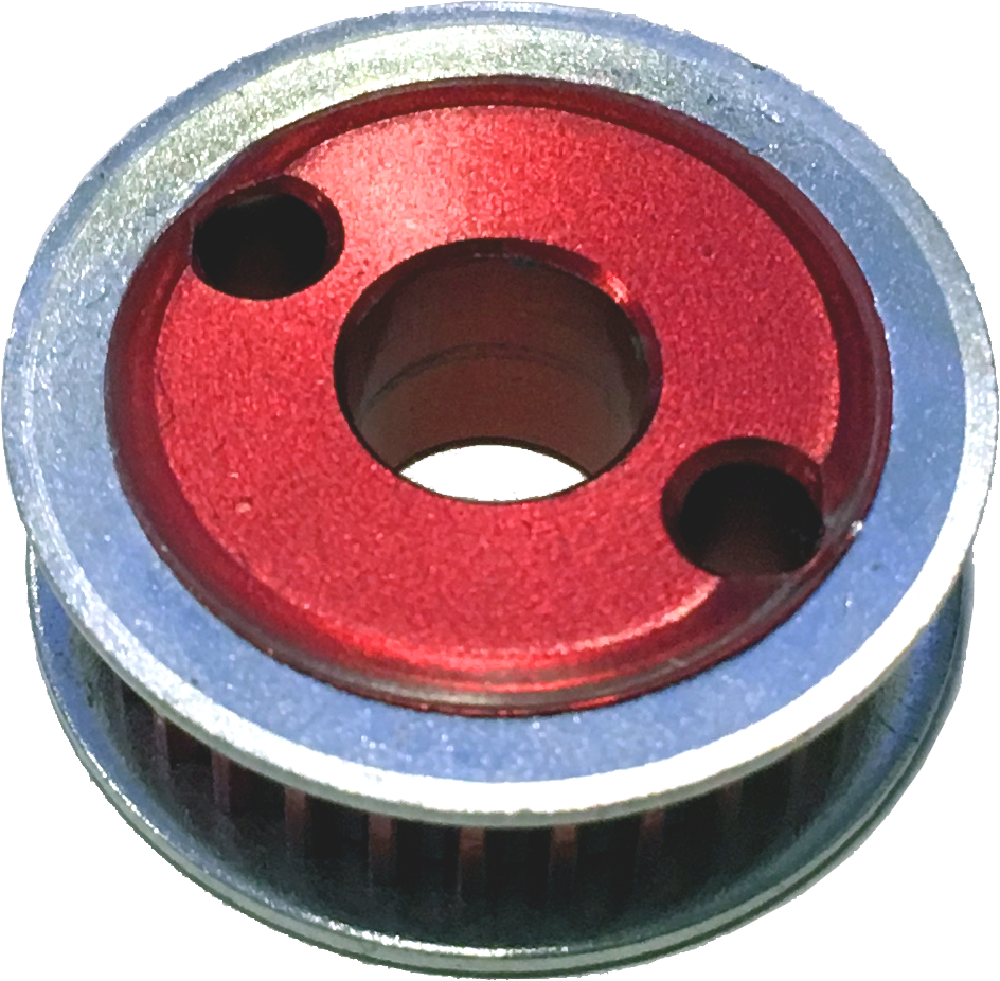

FingerTech S3M Timing Pulley 30T No Hub

This pulley is specially-made for use with drum weapons such as our 3lb Beater Bar Kit.
Use it to replace damaged ones, stock up on spares, or for your own creation!
It can be used with TWO of our 4mm wide timing belts.

 Specifications:
- 30T 3mm pitch HTD pulley
- 9.78mm (0.385") bore with no hub
- Usable belt width: 8.25mm (0.325in)
- Width: 11.3mm (0.446")
- Two 4.5mm (0.177") mounting holes spaced 19.05mm (0.75")
- Flange OD: 32mm (1.26in)
- Material: 6061 aluminum
- Weight: 18g (0.63oz)

Try our Pulley-Belt Distance Calculator!  Pick from our available pulley and belt sizes and it will tell you how far apart they will be, OR plug in your desired distance and it will tell you which belt to use!

30t_pulley_no_hub.STEP
30T_pulley_no_hub.IGS
