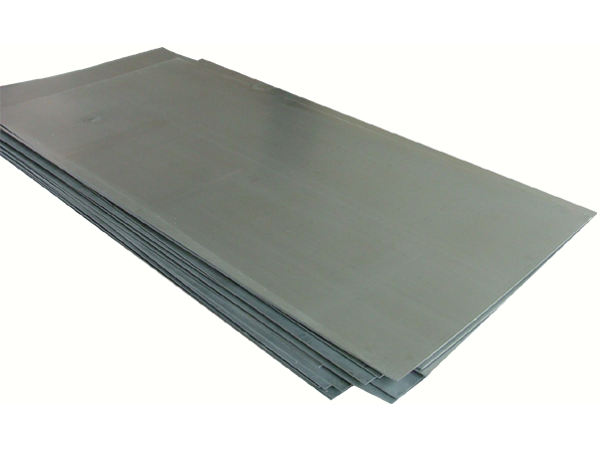

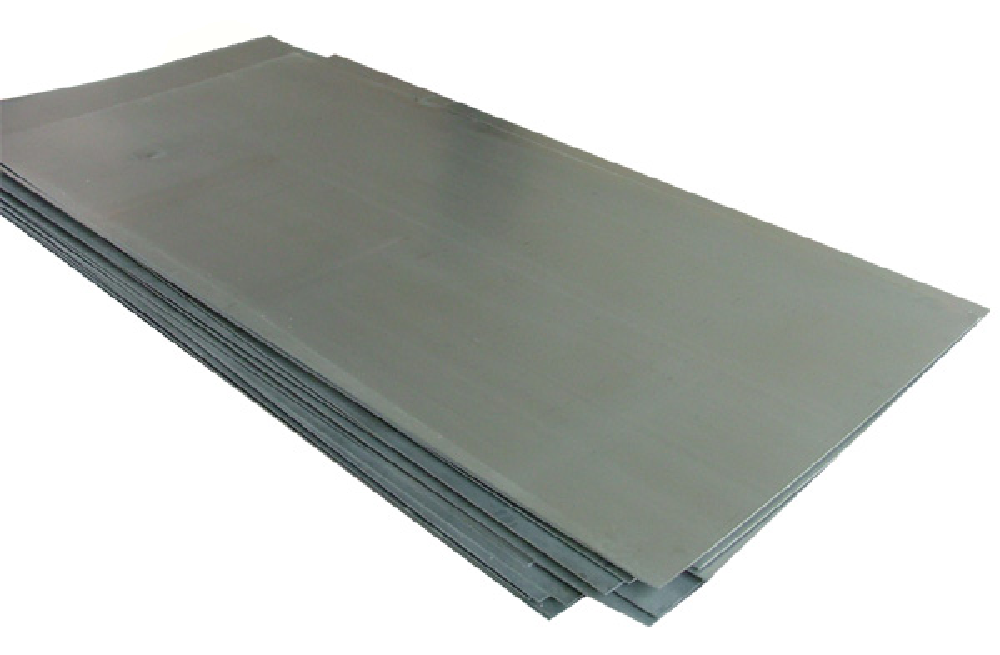

Titanium Sheet - Gr5 (6AL-4V)

Now available in two more new thicknesses: 0.6mm and 0.9mm!

- Does your robot need strong and light armor?  (Of course it does!)  Titanium is the #1 choice for armoring combat robots thanks to its high strength-to-weight ratio.
- FingerTech carries high quality Grade 5 titanium sheets. (Gr2 or "commercially pure" titanium is much weaker and not what you want for combat robots!)
- We carry thick titanium for weapon blades or impenetrable armor; thin and springy that can be bent around to make wheel guards; and everything in between.

Tips
- Use 0.5mm for wrapping around wheels and making springy, shock-absorbing armor.
- Use the medium sizes for rigid panels and wedges.
- Use 5mm and 3mm for weapon bars and blades. (Or impenetrable armor!)
- Thin sizes can be cut with aviation snips and metal shears, thicker sizes with rotary tools (dremel discs, angle grinder zip discs, metal-cutting chop saw), and bandsaws (using metal-cutting blade).
- Can be bent by hand tools or a brake (thicker sizes should be cautiously heated to glowing orange with a propane torch to prevent cracking). Larger radius bends work better.
- Use cutting fluid when drilling, with slow RPM and high pressure. Titanium will work-harden if you let the tool rub on the metal.

Specifications
Grade: Gr5 (6AL-4V) ASTM B265
Sheet Size: 20.32x25.4cm (8x10in)
5mm Additional Sheet Sizes: 30.5cm (12in) length with widths of 30.5cm (12in), 20.3cm (8in), and 10.2cm (4in)
Length and width are ±4mm, thicknesses ±0.15mm, and sheets may not be perfectly flat or unmarked.
Density: 4.43g/cm³ (2.56oz/in³)

Thickness and Weight:
- 0.5mm (0.02in): 137g (4.83 oz)
- 0.6mm (0.024in): 165g (5.80 oz)
- 0.8mm (0.03in): 183g (6.45 oz)
- 0.9mm (0.035in): 206g (7.26 oz)
- 1.0mm (0.04in): 229g (8.07 oz)
- 2.0mm (0.08in): 458g (16.16oz)
- 3.0mm (0.12in): 686g (24.20oz)
- 5.0mm (0.20in):
 20.32x25.4cm (8x10in) is 1198g (42.27oz)
 30.5x30.5cm (12x12in) is 2157g (72.57oz)
 30.5x20.3cm (12x8in) is 1371g (48.38oz)
 30.5x10.2cm (12x4in) is 686g (24.19oz)
Tensile Strength: 9687kg_f/cm² (138kpsi)
