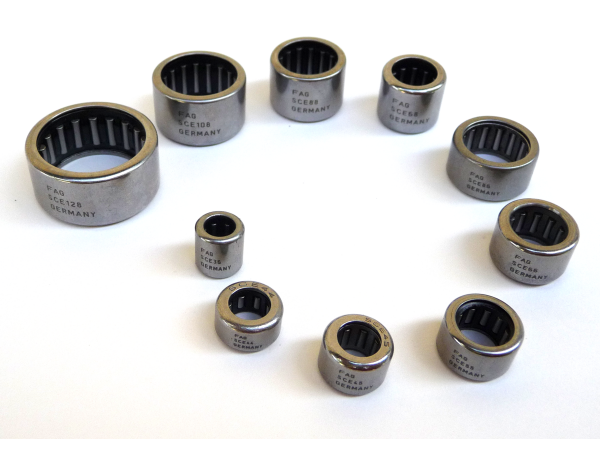

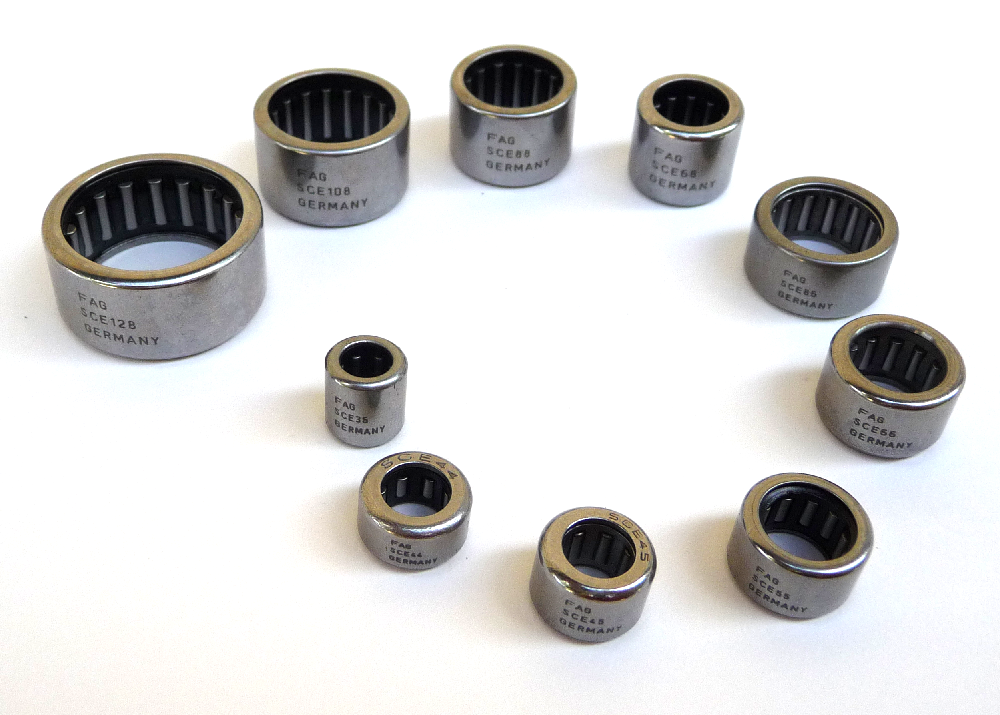

If you do not have enough room for ball bearings, needle roller bearings may be the answer!
- Extremely low radial section height - thanks to thin cylindrical rollers inside the bearing, the bearing hole does not need to be much larger than the shaft.
- These are wider (longer) than ball bearings, and we carry extra wide versions of some for even higher loads.
- Needle roller bearings have a much higher load rating than ball bearings, but slightly reduced speed rating (though still 20k-40k rpm).
- Easily support motor shafts, weapon shafts, and other axles.
- Available in a variety of sizes to suit your needs.
Specifications:
Chrome steel construction, oiled for extended life and high RPM.
* Make sure you have a hard inner shaft. Very soft metals and plastics can be deformed by the needle rollers on impacts.
| | Bore Dia (Fw) | Outer Dia (D) | Width (C) | Dynamic Load Rating,
Radial (Newtons) | Static Load Rating,
Radial (Newtons) | Max Speed
(RPM) | Weight
(grams) |
| SCE24 | 3.18mm (0.125in) | 6.35mm (0.25in) | 6.35mm (0.25in) | 1070 | 740 | 35k | 1.5 |
| SCE36 | 4.76mm (0.1875in) | 8.73mm (0.3438in) | 9.53mm (0.375in) | 2750 | 2370 | 40k | 2 |
SCE44
| 6.35mm (0.250in) | 11.11mm (0.4375in) | 6.35mm (0.250in) | 1600 | 1170 | 35k | 2 |
| SCE45 | 6.35mm (0.250in) | 11.11mm (0.4375in) | 7.94mm (0.3125in) | 2500 | 2090 | 35k | 2 |
| SCE55 | 7.94mm (0.3125in) | 12.7mm (0.5000in) | 7.94mm (0.3125in) | 2900 | 2600 | 32k | 4 |
| SCE66 | 9.53mm (0.375in) | 14.29mm (0.5625in) | 9.53mm (0.375in) | 3900 | 3950 | 30k | 4 |
| SCE68 | 9.53mm (0.375in) | 14.29mm (0.5625in) | 12.7mm (0.500in) | 5800 | 6600 | 30k | 6 |
SCE86
| 12.7mm (0.500in) | 17.46mm (0.6875in) | 9.53mm (0.375in) | 4650 | 5400 | 26k | 5 |
SCE88
| 12.7mm (0.500in) | 17.46mm (0.6875in) | 12.7mm (0.500in) | 6900 | 9000 | 26k | 7 |
SCE108
| 15.88mm (0.625in) | 20.64mm (0.8125in) | 12.7mm (0.500in) | 8100 | 12000 | 24k | 9 |
SCE128
| 19.05mm (0.750in) | 25.4mm (1.000in) | 12.7mm (0.500in) | 9800 | 12500 | 22k | 14 |
