FingerTech 1lb Beater Bar Electronics

Price: 54.95 CAD

39.65 USD 33.87 EUR

In Stock: 32

Description
CAD Files
Reviews
Related

This Brushless Motor and ESC combo are perfect for spinning the FingerTech 1lb Beater Bar. Can be run on 7.4V, 11.1V, or 14.8V for up to 10k RPM! Includes motor, mount, speed controller, and S3M pulley/belt.

Specifications:
Pulley reduction: 1.73:1
Beater bar speed @ 7.4V: 4,700RPM theoretical
Beater bar speed @ 11.1V: 7,050RPM theoretical
Beater bar speed @ 14.8V: 9,400RPM theoretical
Total Weight: 60grams (2.12oz)
Beater bar to motor shaft center-to-center distance: 51.5mm (2.03in)

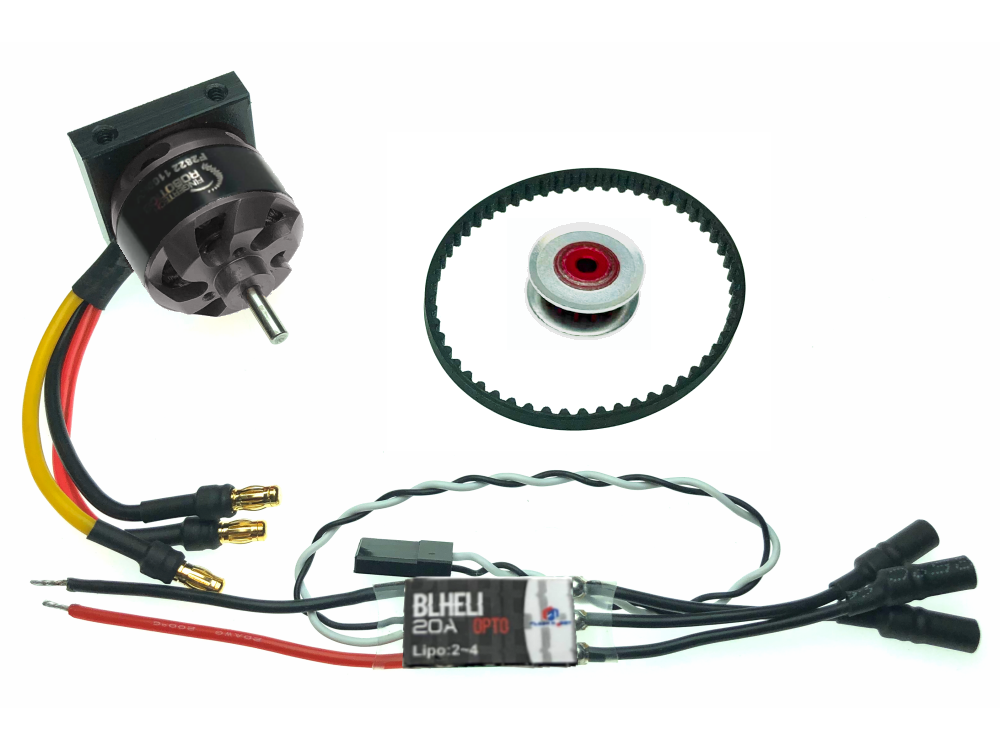

Includes:
1 - FingerTech F2822-1100KV Brushless Outrunner Motor (includes four Phillips head M3 screws for fastening to motor mount)
1 - F28xx Motor Face Mount - has two 6-32 threaded holes top and bottom for mounting to baseplate and lid. Find 6-32 screws here.
1 - BL20A 2-4S 20A Brushless Speed Controller (no built-in BEC)
1 - FingerTech 15T S3M Thin Timing Pulley (bore enlarged to 1/8in for F2822 motor shaft)
1 - FingerTech 55T (165mm) Timing Belt
1 - 0.050" Hex Wrench for tightening pulley

1lb_Beater_Bar_Electronics_Assy.STEP (coming soon)

1 Product Reviews - Average rating 5 / 5 (Show All)

Good with modifications

Team Entropy - 05th July 2023

Good compact esc, pulley and motor fit together perfect, but does require 2 or 4 6-32 screws to mount. Make sure there is enough room to keep the belt fully tensioned, or after a hit the belt will slip and won't catch the belt to spin back up. Consider buying a 2600kv motor from Itgresa for a similar power weight ratio compared to the 3lb set.

FingerTech S3M Timing Pulley (9T-42T) - 6.53 CAD

Our specialty Timing Pulleys and Belts are the perfect solution for transmitting power from motors to wheels or shafts.
While O-Rings and round belts will slip under tension, timing belts have teeth that ensure a positive lock to the pulleys.

Ten pulley sizes means there are 55 different ratio combinations to choose from!
Use with FingerTech Timing Belts, or any other 3mm pitch belt.
• S3M pitch (3mm high-torque)
• Belt Width (maximum): 4mm
• Sizes: 9 Teeth - 42 Teeth
• Bore: 3mm (9T, 15T and 16T can be drilled up to 5/32", larger pulleys can be drilled up to 1/4")

FingerTech S3M Timing Belt - 3.15 CAD

New! Thanks to customer feedback, we have filled in some size gaps with seven new belt lengths: 45T, 46T, 47T, 49T, 51T, 53T, and 54T!
Timing pulleys and belts are the best way to transmit power from your motor to drive wheels or a spinning weapon.
While O-Rings and round belts will slip under tension, timing belts have teeth that ensure a positive lock to the pulleys.

A range of thirty-nine belt sizes allows you to design your robot then pick a belt, rather than the other way around!
Use with our FingerTech S3M pulleys, or any other 3mm pitch pulley.
• S3M pitch (3mm high-torque)
• Width: 4mm
• Circumferences: 120mm (40T) - 408mm (136T).

FingerTech 1lb Beater Bar Assembly - 59.46 CAD

Destroy the competition with FingerTech's 1lb Beater Bar! This design has been proven in the 3lb class, taking home trophies in events all over the world. Now you can rule the Antweight class with this 1lb-scaled Beater Bar Assembly!

See our 1lb Beater Bar Electronics for a perfectly matched motor/ESC combo.

F2822-1100KV Brushless Outrunner 0.125in shaft - 23.87 CAD

• This F2822-1100KV Brushless Outrunner with 0.125in shaft is what was used in the Viper Vertical and Horizontal Spinner Add-Ons (prior to July 2020) and the 1lb Beater Bar Electronics. Its size and power make it ideal for antweight robot weapons, but for added robustness we recommend the F2822-1100KV with 4mm shaft.

BL-Heli 20A Brushless Speed Controller - 20.72 CAD

• 20A Brushless Speed Controller.
• Replacement for the Viper Vertical or Horizontal Spinner Add-Ons.

FingerTech F28xx Motor Face Mount - 7.21 CAD

• Mount your F28xx brushless motor by its faceplate.

• These are used in our 1lb Beater Bar Electronics with the 1lb Beater Bar Assembly.
